Track Charts - Volume 2 - Revision 2 - $10*
New York, New Haven & Hartford
Railroad west of CVRR.
More Central New England RR coverage!
*Now
available as a direct download via Dropbox®! See main NMRO Products page for
details.
NMRO is offering ONE
(1) compact disk containing over 1000(!!) images of track charts, land
valuation maps and also over 2000(!!!) images of detail drawings of the New
Haven Railroad's Western half. We describe this area covered as all New York,
New Haven & Hartford Railroad trackage west of the Central Vermont Railway,
which splits the New Haven in two as it passes through Connecticut.
Since its demise, the
charts and drawings of the New Haven Railroad have long been sought after by
enthusiasts. Most of them are out there but are expensive to obtain and
difficult to find. At last, through the generous donations of fellow rail
historians, much of this data has now been processed and is available on
compact disc.
Please, make note of the
sample images provided as they indicate the extent of trackage covered on this
CD. One key map shows the lines covered by track charts (also known as
condensed profiles), with lines included shown in green. Lines not covered west
of the CV are shown as black and we are still searching for this data. The
other key map shows lines for which there are land valuation maps and are shown
in blue. The remaining red lines are those for which we have yet to find land
valuation maps for west of the CV. As such, while you browse your copy of the
New Haven collection, you will see many empty folders. These will serve as
reminders to all other fans out there that we are still actively seeking
donations of material to expand the collection!
This CD contains track
charts for the following railroad: NEW YORK, NEW HAVEN & HARTFORD (trackage
west of Central Vermont Railway ONLY and still incomplete).
Image Details: Most all
Track Charts and Detail Drawings are 2125 x 2925 pixels; most Land Valuation
Maps are about 9000+/- x 3800 +/- pixels. Some land valuation maps are smaller
(because empty space was cropped out) but are at the same resolution
throughout. Resolution of all images is 250 dpi in 2 color GIF format.
If you were to try and buy
these track charts anywhere else in paper form it would cost you THOUSANDS of
dollars!!! NMRO Products proudly believes that railroad information should be
shared as reasonably as possible.

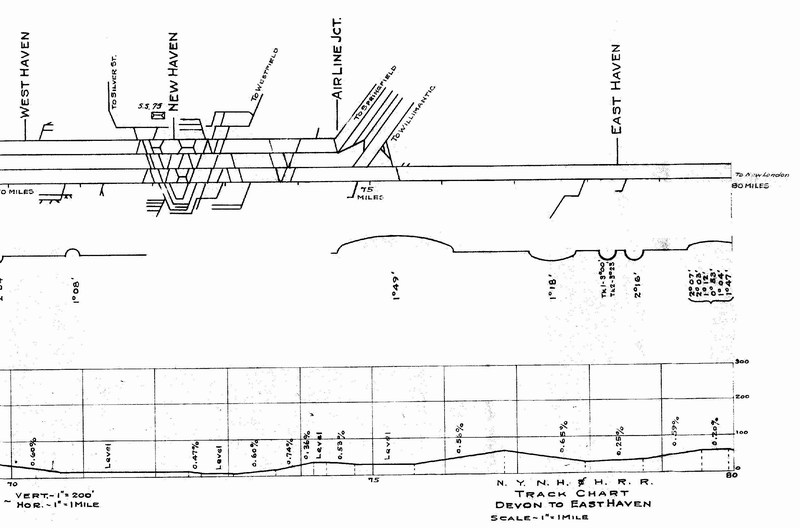

New Haven Track Chart Sample

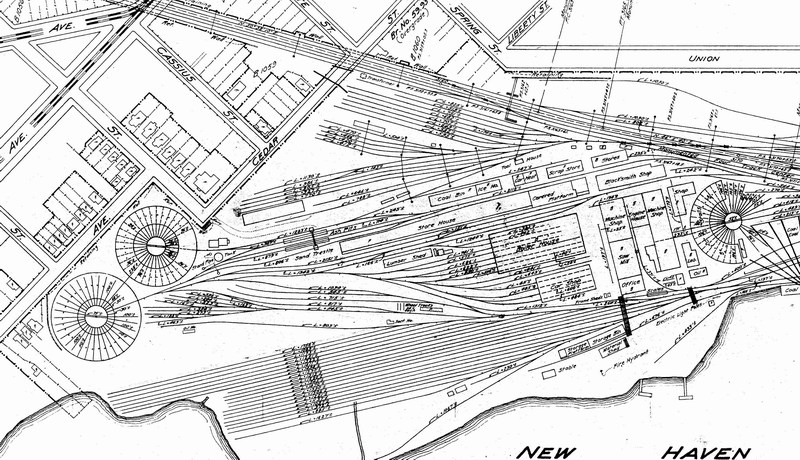

New Haven Land Valuation Map Sample

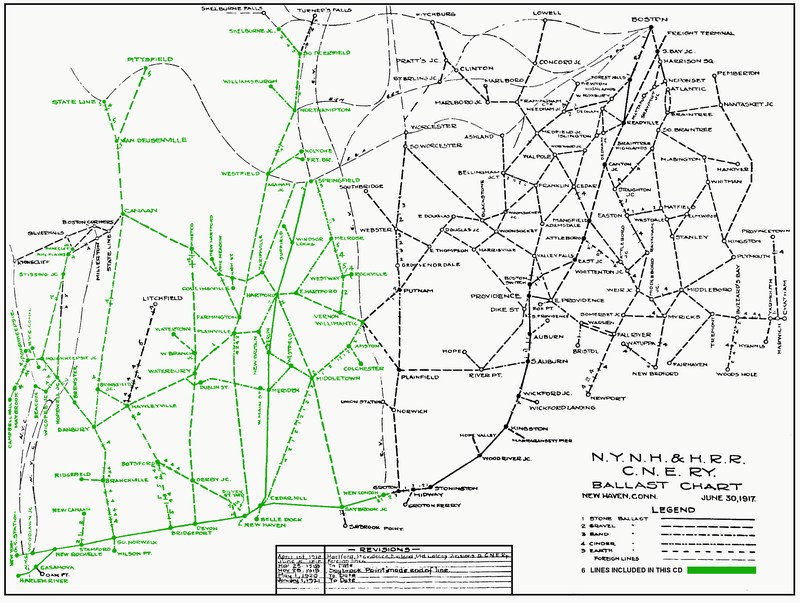

New Haven Track Charts included in this CD.

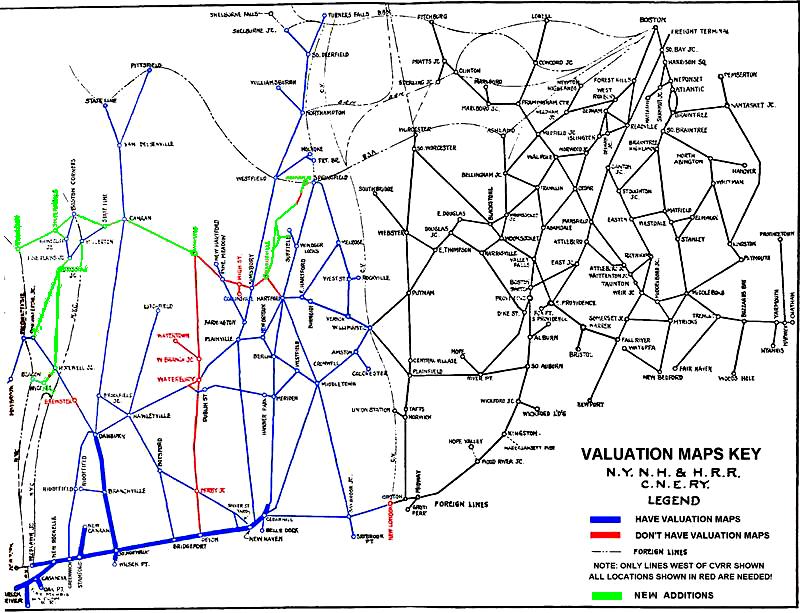

New Haven Valuation Maps included in this CD.
N
Order your copy today by mailing $10 + $2 postage to:
Scott J. Whitney
78 Goret Dr.
Colorado Springs, CO 80911
NOTE 2: International mail orders must include $4 additional postage to Canada & Mexico, Total postage $6.
(NOTE 2: ALL International mail orders outside North America must be by Dropbox download only.)
Or use the handy PayPal links below:
